22M Bionic Tree Tower integrating hidden antenna mounts and cable management for clean installation of 5G 4G and microwave devices

Grote Afbeelding : 22M Bionic Tree Tower integrating hidden antenna mounts and cable management for clean installation of 5G 4G and microwave devices

Productdetails:

Plaats van herkomst:	China
Merknaam:	Jiayao
Certificering:	ISO9001:2008 COC
Modelnummer:	Bionische boomtoren

Betalen & Verzenden Algemene voorwaarden:

Min. bestelaantal:	4 ton
Prijs:	US$1400-1600,1-100Tons;US$1000-1200,>=100 Tons
Verpakking Details:	Verpakt in houten kisten of gebundeld met gegalvaniseerde platen
Levertijd:	15 dagen
Betalingscondities:	L/C, T/T
Levering vermogen:	500 ton per maand

Contact Praatje Nu

22M Bionic Tree Tower integrating hidden antenna mounts and cable management for clean installation of 5G 4G and microwave devices

beschrijving

Productnaam:	22M Bionic Tree Tower met geïntegreerde verborgen antenne	Materiaal:	ASTM A36 A572 Gr50
Moeren & Bouten:	Graad 8.8/6.8/4.8	Certificering:	ISO9001:2008 COC
Hoogte:	9-40m	Standaard:	ANSI/TIA-222-G/H/F, EN 1991-1-4 & EN 1993-3-1
Windsnelheid:	0-300 km/u	Galvanisatie standaard:	ASTM A123/ISO 1461
Milieu-impact:	Milieuvriendelijk	Anticorrosiebehandeling:	thermisch verzinkt
Levensduur:	Meer dan 20 jaar	Lassen:	AWS D 1.1
Installatielocatie:	Stedelijke omgevingen	Locatie:	Stedelijke stadscentra
Sollicitatie:	Geschikt voor zowel stedelijke als landelijke gebieden	Functie:	Luchtzuivering en verbetering van het milieu
Installatielocaties:	Stedelijke gebieden, parken en industriële zones	Extra functies:	Luchtkwaliteitsensoren en datamonitoring
Ontwerpinspiratie:	Natuurlijke boomstructuur
Markeren:	Bionic Tree Tower with hidden antenna mounts , 22M Bionic Tree Tower for 5G 4G , Bionic Tree Tower with cable management

22M Bionic Tree Tower integrating hidden antenna mounts and cable management for clean installation of 5G 4G and microwave devices 0

JIAYAO CO., LTD

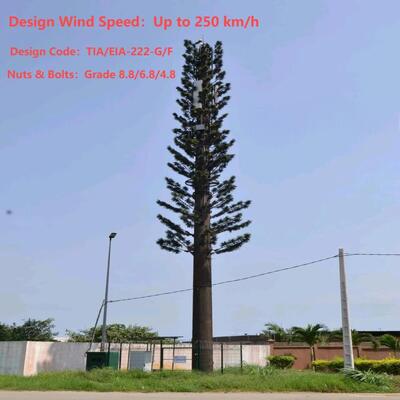

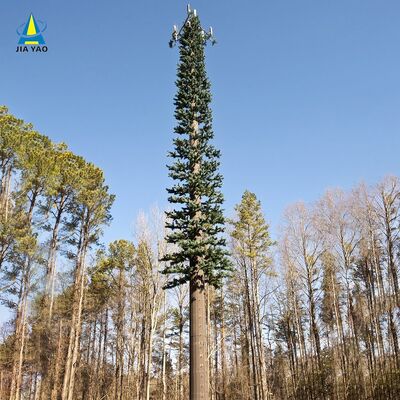

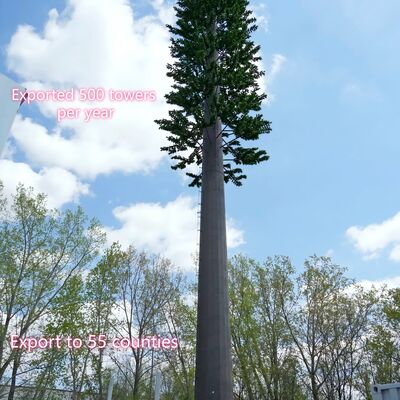

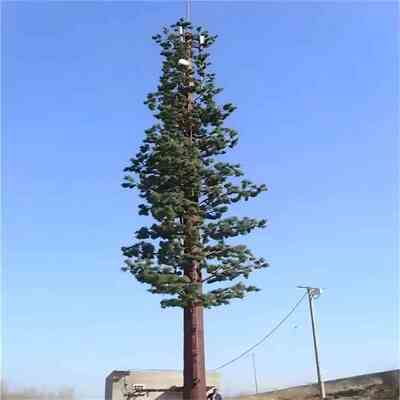

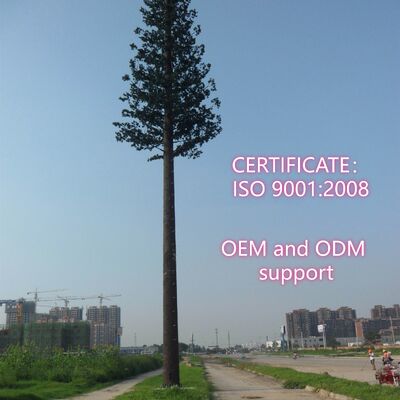

Bionic tree tower, also known as an artificial tree tower, is an innovative structure designed to replicate the look of natural trees while serving critical infrastructure purposes. Unlike traditional towers that often stand out visually, this tower blends seamlessly into landscapes, making it a preferred choice for areas where aesthetic harmony and functionality are both priorities.

Core Structural & Design Features

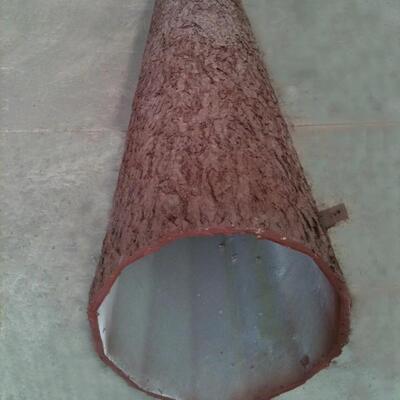

Tree-Like Appearance: It features artificial trunks, branches, and even leaves made from durable materials like fiberglass or high-strength plastics, closely resembling real trees in shape, color, and texture.
Modular Construction: The tower is built with modular components, allowing customization in height (typically 5m to 30m) and “tree species” to match local flora, such as pine, palm, or oak trees.

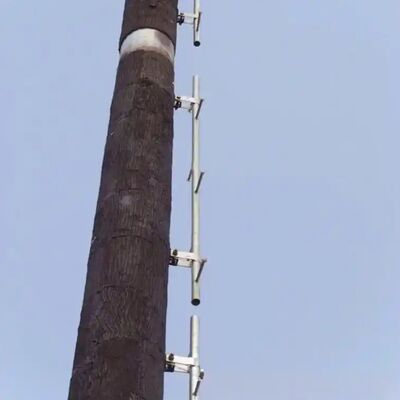

Integrated Functionality: Equipped with hidden platforms, antenna mounts, and cable management systems to support telecommunications equipment (5G/4G antennas, microwave devices), environmental sensors, or even small wind/solar energy harvesters.

Key Materials & Manufacturing Standards

Primary Materials: High-quality fiberglass, UV-resistant plastics, and galvanized steel for the internal support structure, ensuring both durability and corrosion resistance.
Manufacturing Compliance: Follows industry standards like ASTM D256 for impact resistance of plastic components and ISO 1461 for galvanization, guaranteeing long-term performance in outdoor conditions.
Aesthetic Details: Leaves and branches are designed to withstand extreme weather (high winds, heavy snow) and maintain colorfastness for years, using advanced pigmentation techniques.

1.Specifications

Design
1. Design Code	ANSI/TIA-222-G/H/F, EN 1991-1-4 & EN 1993-3-1
Structure Steel
2. Grade	Mild Steel	High Tensile Steel
	GB/T 700:Q235B, Q235C,Q235D	GB/T1591:Q355B, Q355C,Q355D
	ASTM A36	ASTM A572 Gr50
	EN10025: S235JR, S235J0,S235J2	EN10025: S355JR, S355J0,S355J2
3. Design Wind Speed	Up to 250 km/h
4. Allowable deflection	0.5 ~1.0 degree @ operational speed
5. Tension strength (Mpa)	360~510	470~630
6. Yield strength (t≤16mm) (Mpa)	355	235
7. Elongation (%)	20	24
8. Impact strength KV (J)	27(20°C)---Q235B(S235JR)	27(20°C)---Q345B(S355JR)
	27(0°C)---Q235C(S235J0)	27(0°C)---Q345C(S355J0)
	27(-20°C)---Q235D(S235J2)	27(-20°C)---Q345D(S355J2)

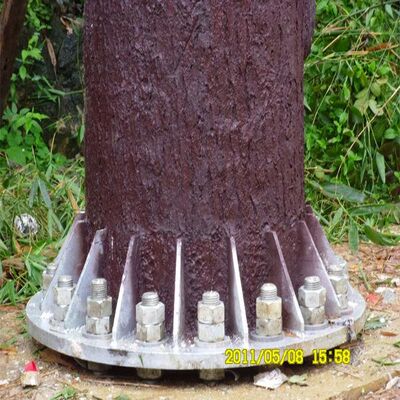

Bolts & Nuts
9. Grade	Grade 4.8, 6.8, 8.8
10. Standards for mechanical properties
10.1 Bolts	ISO 898-1
10.2 Nuts	ISO 898-2
10.3 Washers	ISO 6507-1
11. Standards for Dimensions
11.1 Bolts	DIN7990, DIN931, DIN933
11.2 Nuts	ISO4032, ISO4034
11.3 Washers	DIN7989, DIN127B, ISO7091
Welding
12. Method	CO2 Shielded Arc Welding & Submerged Arc Welding(SAW)
13. Standard	AWS D1.1
Marking
14. Method of marking of the members	Hydraulic Press Stamping
Galvanizing
15. Galvanization standard of steel sections	ISO 1461 or ASTM A123
16. Galvanization standard of bolts and nuts	ISO 1461 or ASTM A153
