30M 55M 80M Hot Dip Galvanized 3 Leg Tubular Steel Free Standing Gsm Cdma Cellular Communication Antenna Mast

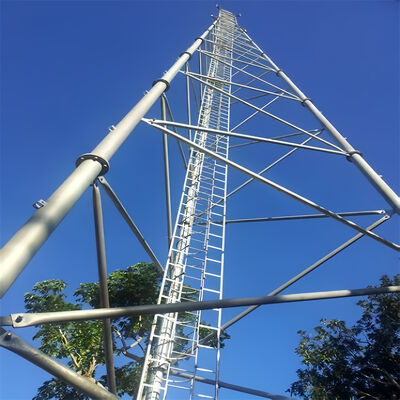

Grote Afbeelding : 30M 55M 80M Hot Dip Galvanized 3 Leg Tubular Steel Free Standing Gsm Cdma Cellular Communication Antenna Mast

Productdetails:

Plaats van herkomst:	China
Merknaam:	Jiayao
Certificering:	ISO9001:2008 COC
Modelnummer:	3 beenige buisvormige stalen toren

Betalen & Verzenden Algemene voorwaarden:

Min. bestelaantal:	4 ton
Prijs:	US$1600,1-100Tons;US$1000,>=100 Tons
Verpakking Details:	Verpakken in houten dozen of gebundeld met gegalvaniseerde vellen
Levertijd:	15 dagen
Betalingscondities:	L/C, T/T
Levering vermogen:	500 ton per maand

Contact Praatje Nu

30M 55M 80M Hot Dip Galvanized 3 Leg Tubular Steel Free Standing Gsm Cdma Cellular Communication Antenna Mast

beschrijving

Standaard:	Ansi/tia-222-g-2005	Galvanisatienorm:	ASTM A123/ISO 1461
Certificaat:	ISO9001:2008	Materiaal:	Buisjesstaal
Naam:	3 Leg Legged Tube Pipe Tubular Zelfhoudend Staal Hot Dip gegalvaniseerd Telecommunicatie Communicati	Hoogte:	8-100M, of aangepast
Windsnelheid:	0-160 km/u	Levensduur:	meer dan 20 jaar
verzonken:	Thermisch verzinkt	Structuur:	driehoekig
kleur:	Strook of douane
Markeren:	Hot Dip Galvanized Steel Antenna Mast , 3 Leg Tubular GSM Mast , Free Standing CDMA Communication Tower

JIAYAO CO., LTD

Product Description

Technical Data

Design
1. Design Code	ANSI/TIA-222-G/H/F, EN 1991-1-4 & EN 1993-3-1
Structure Steel
2. Grade	Mild Steel	High Tensile Steel
	GB/T 700:Q235B, Q235C,Q235D	GB/T1591:Q355B, Q355C,Q355D
	ASTM A36	ASTM A572 Gr50
	EN10025: S235JR, S235J0,S235J2	EN10025: S355JR, S355J0,S355J2
3. Design Wind Speed	Up to 250 km/h
4. Allowable deflection	0.5 ~1.0 degree @ operational speed
5. Tension strength (Mpa)	360~510	470~630
6. Yield strength (t≤16mm) (Mpa)	355	235
7. Elongation (%)	20	24
8. Impact strength KV (J)	27(20°C)---Q235B(S235JR)	27(20°C)---Q345B(S355JR)
	27(0°C)---Q235C(S235J0)	27(0°C)---Q345C(S355J0)
	27(-20°C)---Q235D(S235J2)	27(-20°C)---Q345D(S355J2)
Bolts & Nuts
9. Grade	Grade 4.8, 6.8, 8.8
10. Standards for mechanical properties
10.1 Bolts	ISO 898-1
10.2 Nuts	ISO 898-2
10.3 Washers	ISO 6507-1
11. Standards for Dimensions
11.1 Bolts	DIN7990, DIN931, DIN933
11.2 Nuts	ISO4032, ISO4034
11.3 Washers	DIN7989, DIN127B, ISO7091
Welding
12. Method	CO2 Shielded Arc Welding & Submerged Arc Welding(SAW)
13. Standard	AWS D1.1
Marking
14. Method of marking of the members	Hydraulic Press Stamping
Galvanizing
15. Galvanization standard of steel sections	ISO 1461 or ASTM A123
16. Galvanization standard of bolts and nuts	ISO 1461 or ASTM A153
Test
17. Factory test	Tensile test,Elements analysis, Sharpy test(impact test), Cold Bending, Preece test,Hammer test
