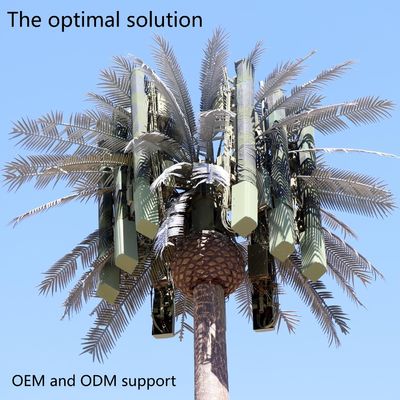

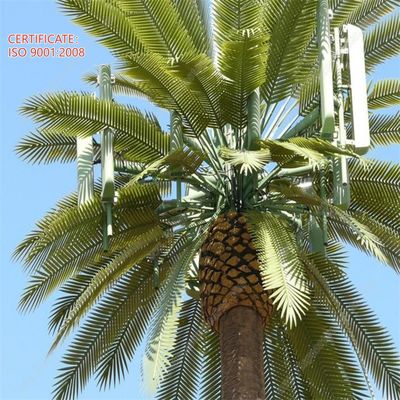

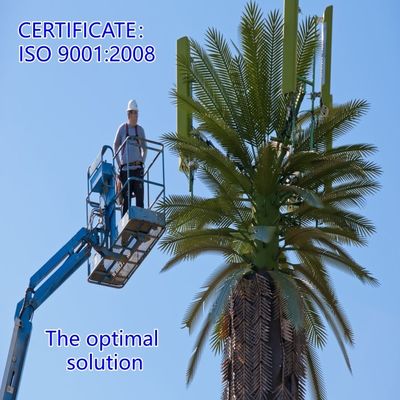

Bionic Tree Tower Camouflage Design For Scenic Area And Ecological Tourism Project Application

Name: Bionic Tree Tower Camouflage Design For Scenic Area And Ecological Tourism Project Application
Brand: Jiayao Co., Ltd.
SKU: Bionische boomtoren
Price: 50.00 USD
Availability: InStock

Alle producten

3 poten hoekige stalen toren
(45)

4 poten hoekige stalen toren
(54)

3 beenige buisvormige stalen toren
(40)

Monopoletoren
(49)

Geaffineerde draadtoren
(22)

Wachttoren
(15)

Bionische boomtoren
(20)

Krachttransmissie toren
(12)

Ik ben online Chatten Nu

Bionic Tree Tower Camouflage Design For Scenic Area And Ecological Tourism Project Application

Grote Afbeelding : Bionic Tree Tower Camouflage Design For Scenic Area And Ecological Tourism Project Application

Productdetails:

Plaats van herkomst:	China
Merknaam:	Jiayao
Certificering:	ISO9001:2008 COC
Modelnummer:	Bionische boomtoren

Betalen & Verzenden Algemene voorwaarden:

Min. bestelaantal:	4 ton
Prijs:	US$1600,1-100Tons;US$1000,>=100 Tons
Verpakking Details:	Verpakken in houten dozen of gebundeld met gegalvaniseerde vellen
Levertijd:	15-20 dagen
Betalingscondities:	L/C, T/T
Levering vermogen:	500-800 ton per maand

Contact Praatje Nu

Bionic Tree Tower Camouflage Design For Scenic Area And Ecological Tourism Project Application

beschrijving

Standaard:	GB / ANSI / TIA-222-G	Materiaal:	ASTM A36 A572 Gr50
Certificering:	ISO9001:2008 COC	Galvanisatienorm:	ASTM A123/ISO 1461
verwarming:	AWS D 1,1	Productnaam:	Bionische boomtoren
Hoogte:	580m	Windsnelheid:	≥ 60 m/s
Leven in dienst:	20-50 jaar	Noten & Bouten:	Graad 8.8/6.8/4.8Voor de toepassing van dit reglement geldt:
Ontwerpcode:	ANSI/TIA-222-G/H/F, EN 1991-1-4 & EN 1993-3-1	Oppervlaktebehandeling:	Thermisch verzinkt of geverfd, op maat gemaakt
Kleur:	Slice of RAL Kleurstandaard en op maat gemaakt
Markeren:	Bionic tree tower camouflage design , Scenic area bionic tree tower , Ecological tourism tree tower

JIAYAO CO., LTD.

1.Specifications

Design
1. Design Code	ANSI/TIA-222-G/H/F, EN 1991-1-4 & EN 1993-3-1
Structure Steel
2. Grade	Mild Steel	High Tensile Steel
	GB/T 700:Q235B, Q235C,Q235D	GB/T1591:Q355B, Q355C,Q355D
	ASTM A36	ASTM A572 Gr50
	EN10025: S235JR, S235J0,S235J2	EN10025: S355JR, S355J0,S355J2
3. Design Wind Speed	Up to 250 km/h
4. Allowable deflection	0.5 ~1.0 degree @ operational speed
5. Tension strength (Mpa)	360~510	470~630
6. Yield strength (t≤16mm) (Mpa)	355	235
7. Elongation (%)	20	24
8. Impact strength KV (J)	27(20°C)---Q235B(S235JR)	27(20°C)---Q345B(S355JR)
	27(0°C)---Q235C(S235J0)	27(0°C)---Q345C(S355J0)
	27(-20°C)---Q235D(S235J2)	27(-20°C)---Q345D(S355J2)
Bolts & Nuts
9. Grade	Grade 4.8, 6.8, 8.8
10. Standards for mechanical properties
10.1 Bolts	ISO 898-1
10.2 Nuts	ISO 898-2
10.3 Washers	ISO 6507-1
11. Standards for Dimensions
11.1 Bolts	DIN7990, DIN931, DIN933
11.2 Nuts	ISO4032, ISO4034
11.3 Washers	DIN7989, DIN127B, ISO7091
Welding
12. Method	CO2 Shielded Arc Welding & Submerged Arc Welding(SAW)
13. Standard	AWS D1.1
Marking
14. Method of marking of the members	Hydraulic Press Stamping
Galvanizing
15. Galvanization standard of steel sections	ISO 1461 or ASTM A123
16. Galvanization standard of bolts and nuts	ISO 1461 or ASTM A153

2.Product Detail

Please Click Here For More Information!!!!!!

3.Packaging & Shipping

4.Cooperation Customers

5.Certifications

6.Our Services

JIAYAO CO., LTD. is a professional telecom tower manufacturer and approved by ISO9001. We are committed to providing customers with the most optimized solutions and the best communication tower. Many products have been exported to USA, Europe and other 55 different counties.
We specialize in designing and manufacturer of angle steel tower, tube steel tower, monopole tower, pine tree tower, guyed tower and guard tower. Our departments include design, R&D, inspection, laboratory, QC, galvanization and steel tower departments. Our raw materials come from famous steel mills in China: HBIS Group, Baowu Steel Group, Shougang Group.

6.FAO

1. Is the tower's structure unitary?
No, we can design and produce it as customer's request.

2. Manufacturer or trade company?
Weare manufacturer and have own factory, and welcome to visit our factory.

3. Delivery time?
Usually, within 20 days. And we produce and ship product according to buyer’s request.

4. How long does the service life for steel tower?
We can assured 20-30 years’service life.

5. For assembly, is it very complex and is there a assembly book or guidance?
We will provide assembly drawing with shipping the cargo.

If you need it, we will welcome you 24 hours a day!

Design
1. Design Code	TIA/EIA-222-G/F
Structure Steel
2. Grade	Mild Steel	High Tensile Steel
	GB/T 700:Q235B, Q235C,Q235D	GB/T1591:Q345B, Q345C,Q3455D
	ASTM A36	ASTM A572 Gr50
	EN10025: S235JR, S235J0,S235J2	EN10025: S355JR, S355J0,S355J2
3. Design Wind Speed	Up to 250 km/h
4. Allowable deflection	0.5 ~1.0 degree @ operational speed
5. Tension strength (Mpa)	360~510	470~630
6. Yield strength (t≤16mm) (Mpa)	355	235
7. Elongation (%)	20	24
8. Impact strength KV (J)	27(20°C)---Q235B(S235JR)	27(20°C)---Q345B(S355JR)
	27(0°C)---Q235C(S235J0)	27(0°C)---Q345C(S355J0)
	27(-20°C)---Q235D(S235J2)	27(-20°C)---Q345D(S355J2)
Bolts & Nuts
9. Grade	Grade 4.8, 6.8, 8.8
10. Standards for mechanical properties
10.1 Bolts	ISO 898-1
10.2 Nuts	ISO 898-2
10.3 Washers	ISO 6507-1
11. Standards for Dimensions
11.1 Bolts	DIN7990, DIN931, DIN933
11.2 Nuts	ISO4032, ISO4034
11.3 Washers	DIN7989, DIN127B, ISO7091
Welding
12. Method	CO2 Shielded Arc Welding & Submerged Arc Welding(SAW)
13. Standard	AWS D1.1
Marking
14. Method of marking of the members	Hydraulic Press Stamping
Galvanizing
15. Galvanization standard of steel sections	ISO 1461 or ASTM A123
16. Galvanization standard of bolts and nuts	ISO 1461 or ASTM A153

label:

kunstmatige boomceltorens,

camouflage mobiele telefoon toren,

nep-celtoren bomen
